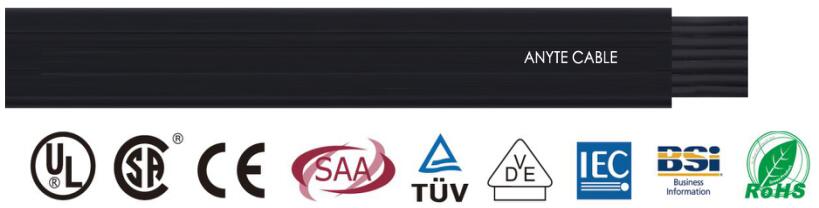

Flex Flat Track Cable YFFB-1000

Conductor: Multiple strands of fine oxygen-free bare copper wire,class 5

Insulation: special PVC mix

Core identification: colored or numbered,  ground wire in yellow/green (optional)

Core line structure: in a line or flower shaped.

Shielding :braided copper wire shield (optional)

Sheathing material: special PVC mix

Sheath color: black or gray (can be customized)

No hazardous substances, RoHS or REACH compliant

Conforms to CE/TUV standards, etc.

Tensile strength, tear resistance, flexibility, good performance and stability

Minimum bending radius:

 mobile installation: 10x cable OD

Operating temperature range:

mobile installation: -5°C to +70°C

Operating voltage: 0.6/1KV
