Cold resistant -60 +180℃ Silicone cable

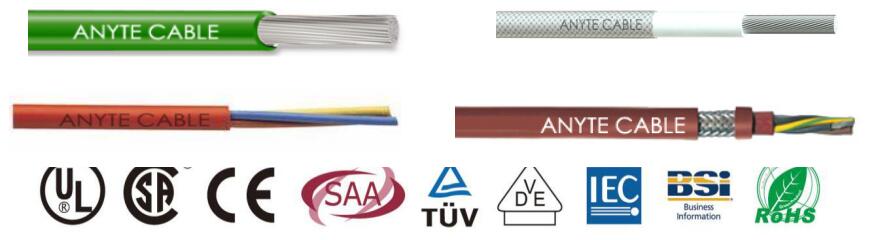

Structure

Single core:
SiF (customizable cross-section 0.2-240mm²)
Single or multiple stranded copper wire / tinned wire conductor
Flame retardant silicone rubber insulation
SiF / GL (customizable cross-section 0.2-240mm²)
Single or multiple stranded copper wire / tinned wire conductor
Flame retardant silicone rubber insulation
Outer glass fiber woven cover

Multi-core unshielded: SiHF (2-63 core can be customized, cross-section 0.3-240mm²)
Single or multiple stranded copper wire / tinned wire conductor
Flame retardant silicone rubber insulation
Stranded composite cable
Flame-retardant silicone rubber outer sheath

Multi-core shielding: SiHFC (2-63 core can be customized, cross-section 0.3-240mm²)
Single or multiple stranded copper wire / tinned wire conductor
Flame retardant silicone rubber insulation
Stranded composite cable
(Tinned) copper wire shield braid, coverage rate is 85%
Flame-retardant silicone rubber outer sheath

Characteristic

Dielectric strength performance is stable, insulation resistance is still high at high temperature
High flash point or flash point
Comply with CE and other standards

Performance

Single core: SiF / SiF / GL:
Working voltage: 300 / 500V
Temperature range: -60 ℃ + 180 ℃ (short-term up to + 200 ℃)
Conductor temperature limit: + 180 ℃ during operation
Test voltage: 2000V

Multi-core unshielded: SiHF
Working voltage: 300 / 500V
Temperature range: -60 ℃ + 180 ℃ (short-term up to + 200 ℃)
Conductor temperature limit: + 180 ℃ during operation
Test voltage: 2000V

Multi-core shielding: SiHFC
Working voltage: 300 / 500V
Temperature range: -60 ℃ + 180 ℃ (short-term up to + 200 ℃)
Conductor temperature limit: + 180 ℃ during operation
Test voltage: 2000V

Insulation resistance: 200 MOhm x cm
Minimum bending radius: 7.5x cable outer diameter
Corrosion of combustion gas: halogen-free
