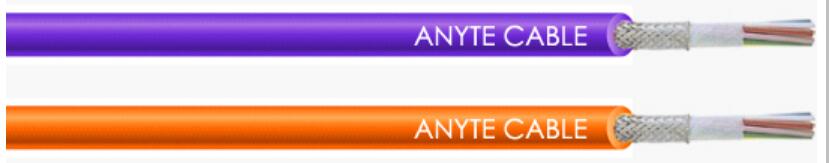

ANYDATA-INTER-BUS-PVC Remote INTERBUS cable

Conductor Stranded of fine copper wire (class 6) comply with VDE0295/IEC228 standard.

Insulation material: Special PE mixed with highly mechanical properties

Cores twisted lay together, nonwovens or PET tape covered

Tinned copper wire braiding with highly bending resistant, 85 % coverage.

outer sheath: Special PVC mixture ,normal color is in purple .

with minimized outer diameter to save the installing space

Particular oil resistant, chemistry resistant, Non-adhesive, high abrasion and tear resistant.

High-density braided shield to guarantee the transmission freely for the signal and pulse

Non-hazardous substances, RoHS compliant
In accordance with EEC 73/23 and CE/TUV/VDE standard.

Operating voltage: 300V maximum
Insulation resistance:> 20 MOhm x km
Minimum bend radius: 20x cable outer diameter
Operating Temperature Range: Movable installation: - 5 ° C to +90 ° C fixed installation: -30 ° C to +90 ° C
Wire grounding ID: G = green / yellow protective conductor X =without green / yellow protective conductor
Anti-radiation intensity: up to 8 × 107cJ/kg
