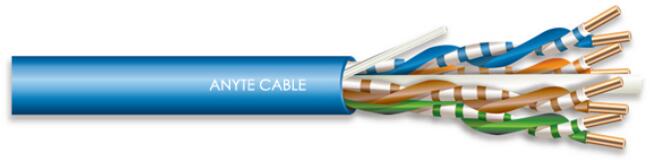

ANYDATA-UTP Cat6 LAN CABLE UTP Cat6
Structure
Conductor:Solid or stranded with 7 pieces (tinned) copper wire
Meet the UL444 standard HDPE polyethylene insulated
Two-cores twisted pair, total of four pairs,filled by plastic cross
Special aluminum mylar 100% coverage
drain wire:Single or stranded fine (tin plated) copper wires
(Tinned) copper braid or spiral shielding , coverage rate of 85%
Special PVC outer sheath, or a higher standard of low smoke zero halogen flame retardant outer sheath (optional materials can be customized colors)
Characteristic
Comply with standard UL758,UL1581,UL444,TIA/EIA-568,CSA C22.2, ISO/IEC 11801
Transmission frequency of 100MHz, and support for duplex applications
Comply with RoHS standards
Pass UL VW-1 & CSA FT1 vertical flame test
Performance
Operating voltage: 30V
Operating temperature range:
Movable Installation: - 5 ° C to +80 ° C fixed installation: -40 ° C to +80 ° C
Flammability rating: IEC60332-1 CM
DC Resistance at 20 ℃ (Ω / KM) <93.8
Operating Temperature 70 ℃
68% of the propagation velocity
Impedance (ohms) 100 ± 15
Flame Propagation Test to IEC 60332 Part 1 (LSOH) Flame Propagation Test to IEC 60332 Part 1 and Part III (LSFROH) halogen acid gas emissions in line with the IEC 60754, Part 1
Smoke emissions tested comply with IEC 61034
