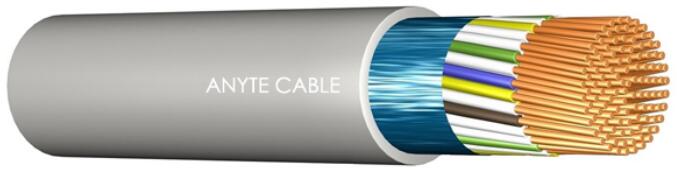

ANYDATA-TELECABLE Telephone Cable
Structure
Conductor: Solid wire, class 1,comply with VDE0295/IEC228
Insulation: PVC or PE mixture material ,generally in two or four cores
Jacket: PVC mixture material, can be produced in round or flat(color can be customized according to customer requirements)
Characteristic
Comply with NEC725, UL13, UL1581, combustion test by FT1 rating
Non-hazardous substances, RoHS compliant
This product complies with the provisions of the EEC directive73/23 (low-voltage procedures)of CE
Performance
Operating voltage: 150V
Operating temperature range: Movable installation: - 5 ° C to +60 °C fixed installation: -40 ° C to +60 ° C
