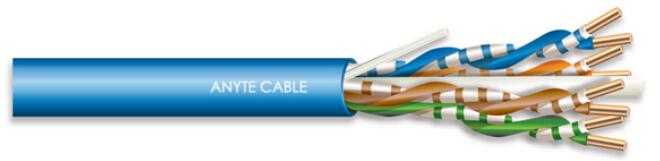

ANYAPPS- CONTAINER HOUSE-NETWORK CABLE Network cable used to Container house & Locomotive house

Structure

7 wire twist or solid bare copper wires  as conductor, meet with multi-countries' standards

HDPE core insulation,which complied with UL444 Standard

Each two cores twisted, and four pairs(if for CAT6, there is a cross as filler)

Special PVC jacket or LSZH fire resistant Jacket (Colors can be determined by customers)

Characteristic

Complying with UL758,UL1581,UL444,UL1666,TIA/EIA-568, CSA C22.2, ISO/IEC 11801 Standard, and the Transmission frequency reaches 100MHz, support duplex application, environmental, meet with RoHS requires.

SAA / UL / CSA / CE / BS standard, so the cable can be used in Australia,  America, Europe and other markets.

Performance
Rated voltage: 30 V,
Temperature Range: Movable installation: -5° C to +180 ° C
Fixed installation: -40 ° C to +180° C
Fire Resistant Class: IEC60332-1 CM
20℃(Ω/ KM)  DC resistance <93.8
working temp. 70℃
transfer speed 68%
Impedance (ohm) 100 ± 15
Fire tranfer test pass IEC 60332 Part 1(LSOH)
 Fire tranfer test pass IEC 60332 Part 1 and Part 3(LSFROH)
 Halogen acid gas emissions comply with  IEC 60754 Part 1
 Black smoke emission comply  with the IEC 61034
