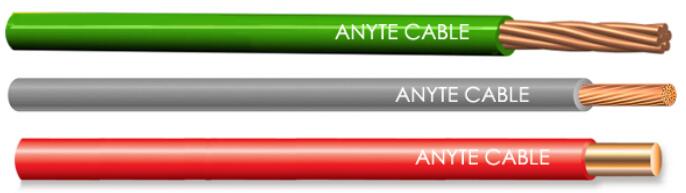

ANYAPPS-ELEVATOR CABLE-H05Z1-K/U/R H07Z1-K/U/R LSZH SINGLE CORE ELEVATOR CABLE
Structure
Solid or multi-strand fine bare copper wires twist as conductor, in class 1,2 or 5 Insulation:special Polyolefin mixture material (color can be customized according to customer requirements)
Characteristic
Does not release toxic and corrosive substances ,and does not release hydrogen chloride, to avoid such hazards. Chemical resistance, particularly oil, small bend radius, flame retardant, resistant to ozone, low smoke when burned no toxic substances, the maximum guarantee of life.
Performance
Rated voltage:
H05Z Series: 300/500V
H07Z Series: 450/750V
Minimum bend radius: 8x cable diameter
Operating temperature range: -40 ° C to +90 ° C
Anti-radiation intensity: up to 20 × 106cJ/kg
