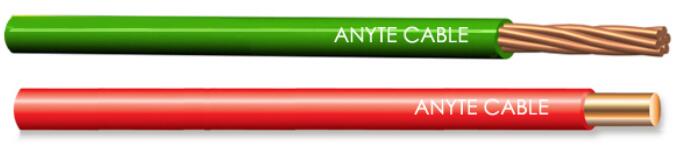

ANYAPPS-FIX INSTALL-SINGLE CORE CABLE H05Z1-/U/R H07Z1-/U/R LSZH Single Installation Cable

Structure

Conductor:Class 1,2,5 stranded conductor,fine bare copper wire,meet VDE0295/IEC228
Insulation :polyolefin insulated insulation in accord with DIN VDE 0282 standard(color can be customized according to customer requirements)

Characteristic

Not releasing toxic substances, don't release corrosive substances, not release hydrogen, thus avoiding the such damage. Special oil resistant chemical resistance, small bending radius, flame retardant, ozone resistance
Burns low smoke without producing toxic substances, ensure maximum life safety.
Without noxious material,acc. To ROHS.
This product conforms EEC procedures 73/23 (low voltage procedures) of CE rules
Complying with CE/TUV/SAA/VDE/BS standard.

Performance

operating temperature:-40℃ to 90 ℃
Minimum bending radius: 8 x cable diameter
Rated voltage:H05Z series: 300/500 V H07Z series: 450/750 V
Resist radiation intensity: top 20 x 106 cJ/kg
