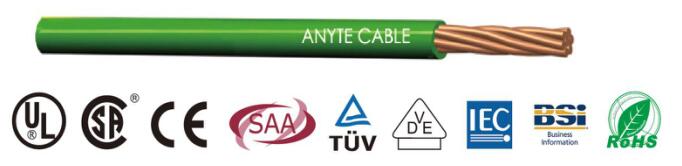

ANYCERT-CE/TUV-H05V-R H05V-R single core flex PVC Wire

Structure

Compliant with VDE0295.IEC60228-2,fine stranded (tinned) copper wire
Conforms to VDE 0281.HD 21.3 & IEC 60227 PVC insulation
(Insulation color can be customized according to customer requirements)

Characteristic

Flexible, small bending radius.
Using environmentally materials,with ROHS directive
Multi-standard cables CE / TUV and other approvals comply with European standards, so that the cable can adapt to different European market needs.

Performance

Working voltage: 300 / 500V
Minimum bending radius: 12x cable outer diameter
Operating temperature range:
Mobile installation: -5 ℃ to + 70 ℃
Fixed installation: -40 ℃ to + 70 ℃
Oil resistance, flame retardant: IEC 60332.1 / HD 405.2 and VDE 0207-4
