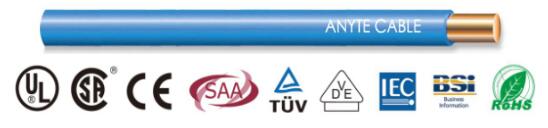

ANYCERT-CE/TUV-H05Z1-U

Structure

Compliant with VDE0295.IEC60228-2 stranded fine (tinned) copper wire
Complies with VDE 0281.HD 21.3 & IEC 60227 PVC insulation.

Characteristic

No toxic gas will be generated during the combustion process, comply with EN60754
In case of fire, low smoke density complies with EN61034,Using environmentally materials, with ROHS directive.

Performance

Working voltage: 300 / 500V
Minimum bending radius: 12x cable outer diameter
Operating temperature range:
Mobile installation: -5 ℃ to + 70 ℃
Fixed installation: -40 ℃ to + 70 ℃
Oil resistance, flame retardant: IEC 60332.1
