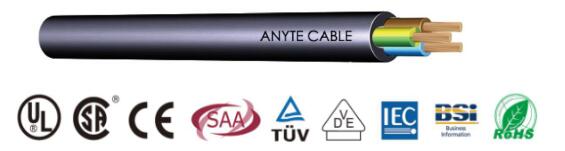

ANYCERT-CE-H03V2V2-F/H05V2V2-F Fire resistant PVC/PVC Cable

Structure

Compliant with VDE0295. IEC60228 fine stranded (tinned) copper wire
Meet VDE 0281.HD 21.5 & IEC 60227 special flame retardant PVC insulation,PVC jacket.

Characteristic

High temperature resistance 90 ℃, moisture proof, flame retardant.
Meet the most stringent electrical and mechanical performance requirements.
Using environmentally protect materials, in line with ROHS directive.
Complies with European CE standards.

Performance

Working voltage：H03V2V2-F：300V/300V
H05V2V2-F：300V/500V
Minimum bending radius:
Mobile installation: 15x cable outer diameter
Fixed installation: 4x cable outer diameter
Operating temperature range:
Mobile installation: -5 ℃ to + 90 ℃
Fixed installation: -40 ℃ to + 90 ℃
Flame retardant: IEC 60332-1-2
