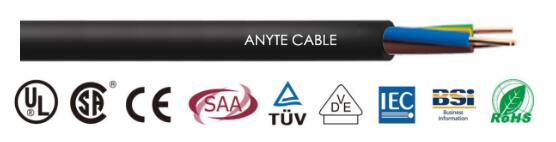

ANYCERT-CE-H05VV-U Solid copper PVC/PVC Cable
Structure
Compliant with IEC60228 fine stranded copper wire.
Meets HD 21.7 T12 polyvinyl chloride PVC insulation,Compliant with VDE 0281.HD 21.7 TM2 PVC inner sheath (optional) .
(Tinned) copper wire shield braid, coverage rate is 85%.
Complies with VDE 0281.HD 21.7 TM5 oil-resistant Polyvinyl chloride PVC outer sheath
Characteristic
Using environmentally protect materials, in line with ROHS directive
Complies with European CE standards.
Performance
Working voltage: 300 / 500V
Minimum bending radius: 10x cable outer diameter
Operating temperature range:
Mobile installation: -5 ℃ to + 90 ℃
Fixed installation: -40 ℃ to + 90 ℃
Flame retardant: IEC 60332-1-2
