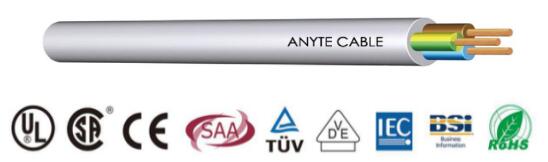

ANYCERT-CE/TUV-H05Z1Z1-F H05Z1Z1-F LSZH Multi Core Cable
Structure
Compliant with VDE0295. IEC60228 stranded fine (tinned) copper wire
Compliant with VDE 0281.HD 21.5 & IEC 60227 low smoke halogen free LSZH insulation
low smoke halogen free LSZH sheath
(The color of insulation sheath can be customized according to customer requirements).
Characteristic
No toxic gas will be generated during the combustion process, comply with EN60754
In case of fire, low smoke density complies with EN61034
Using environmentally materials, comply with ROHS directive
Multi-standard cables CE / TUV and other approvals comply with European standards.
Performance
Working voltage: 300 / 500V
Minimum bending radius: 12x cable outer diameter
Operating temperature range:
Mobile installation: -5 ℃ to + 90 ℃
Fixed installation: -40 ℃ to + 90 ℃
Flame retardant: IEC 60332-1-2
