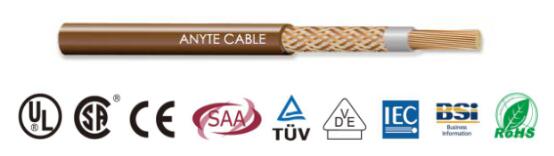

ANYCERT-UL/CUL/CSA-UL 1533 UL 1533 single core shield cable
Structure
Single or multiple strands of fine stranded 30-16AWG bare copper wire or tinned copper wire
SRPVC mixed core wire insulation (color can be customized according to customer requirements)
* Aluminum foil Mylar 100% coated shield
* Copper wire or tinned copper wire shield braided or wrapped, the coverage rate is up to 85%
Special PVC mixture outer sheath
Characteristic
The cable is easy to lay, easy to strip and cut
The product is resistant to temperature, oil, mildew and excellent aging properties
The multi-standard wiring cable UL-CSA and other approvals comply with US and Canadian standards, enabling the cable to be used in the North American
Performance
Rated temperature: 80 ℃
Working voltage: no regulation
Oil resistance, flame retardant:
CSA FT1 and UL VW-1
