ANYCERT-UL/CUL/CSA-UL 2571

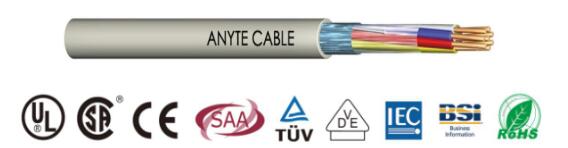

Structure

Stranded strands of fine bare copper wire conductor or tinned copper wire
Special PVC or SRPVC mixed core insulation
Color can be customized according to customer requirements)
Stranded composite cable
Aluminum foil Mylar 100% coated shield
(Tinned) copper wire shield braid, coverage rate is 85%
Special PVC mixture outer sheath (color can be customized according to customer requirements)

Characteristic

Small outer diameter to save space for cable installation.
Meet the most stringent electrical and mechanical performance requirements
Firm and soft, with excellent resistance to grease and chemicals.

Performance

Rated temperature: 80 ℃
Working voltage: no regulation
Oil resistance, flame retardant: CSA FT1 and UL VW-1
