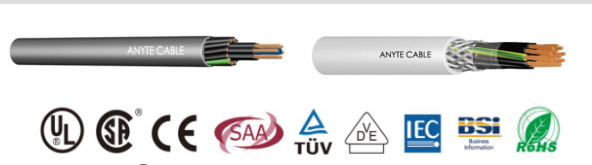

ANYCERT- UL/CUL/CSA AWM/MTW UL 2587 PVC/PVC Control Cable

Structure
Stranded strands of fine bare copper wire conductors
Special PVC mixed core wire insulation (color can be customized according to customer requirements)
Stranded composite cable
  * Insulated plastic film coating or special PVC mixture inner sheath
  * Copper wire (tinned) shield braid, coverage rate up to 85%
Special PVC mixture outer sheath (color can be customized according to customer requirements)
Tick * for optional structure.
Characteristic
Flexible, small bending radius, flame retardant
Special heat-resistant PVC insulation up to 105 ℃
AWM standard complies with UL758, UL1581
The MTW standard complies with:
UL1063, UL83, ANSI / NFPA70, NFPA79, National Electrical Code, NEC level and national electrical regulations, "Electrical Standard for Industrial Machinery and Electrical Standard Industrial Machinery
Performance
Rated temperature: 90 ℃
Working voltage: 600V
Oil resistance, flame retardant: CSA FT1 and UL VW-1
