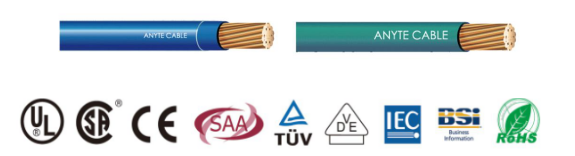

ANYCERT- UL83-Nylon Cable THHN,THHW,THW,THWN,THWN-2,TW
Structure
Single or multiple stranded of 14-2 / OAWG bare copper wire in accordance with ASTM-B3 / B8
High dielectric strength flame retardant PVC core wire insulation in accordance with UL1581
(The color can be customized according to customer requirements)
Nylon (THHN / THWN) covered with UL1581 insulated outer layer
Sun protection in accordance with UL1277, air-proof PVC core wire sheath
(The color can be customized according to customer requirements)
Characteristic
Nylon cable has excellent safety performance such as anti-termite, anti-rat bite, good heat resistance (heat resistance up to 200 degrees Celsius)
Nylon cable has high mechanical strength and excellent wear resistance, cold resistance, surface hardness, bending strength, strong impact, chemical resistance, oil resistance.According to the use experience in the United States and domestic tests, the service life of nylon wire can reach more than 40 years
Performance
Rated voltage: 600V
Rated temperature: 90 ℃
