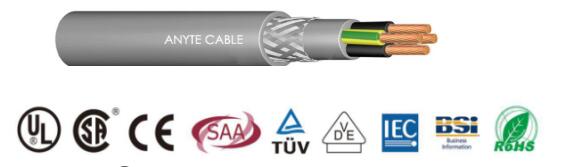

ANYFLEX-PVC-YCY-OZ/JZ PVC multi cores shield double jacket control cable
Structure
Compliant with VDE0295 / IEC228 Class 5, stranded fine stranded copper wire conductor
Special PVC mixed core insulation
Black core wire white digital number (color can be customized according to customer requirements)
Stranded composite cable
Special PVC mixture inner sheath
(Tinned) copper wire shield braid, coverage rate is 85%
Special PVC mixture outer sheath
Characteristic
High weaving density and low transfer impedance to prevent pulse interference
Minimize external interference during signal transmission
No harmful substances, RoHS compliant
Comply with CE / TUV and other standards
Performance
Work voltage：300/500 V
Insulation resistant：> 20 MOhm x km
Minimum bending radius:
mobile installation：20xcable O.D.
Fixed installation:6xcable O.D.
Temperature：
Mobile installation：-5℃ to +70℃，
Fixed installation：- 40℃ to +80℃
