ANYFLEX-PVC-LT60+HT180 Cold resistant -60 +180℃ Silicone cable

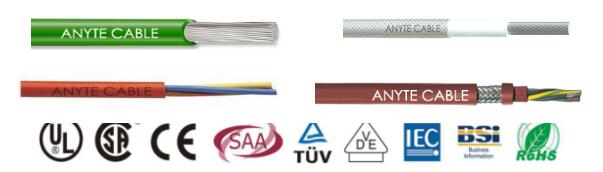

Structure
Single core:
SiF (customizable cross-section 0.2-240mm²)
Single or multiple stranded copper wire / tinned wire conductor
Flame retardant silicone rubber insulation
SiF / GL (customizable cross-section 0.2-240mm²)
Single or multiple stranded copper wire / tinned wire conductor
Flame retardant silicone rubber insulation
Outer glass fiber woven cover

Multi-core unshielded: SiHF (2-63 core can be customized, cross-section 0.3-240mm²)
Single or multiple stranded copper wire / tinned wire conductor
Flame retardant silicone rubber insulation
Stranded composite cable
Flame-retardant silicone rubber outer sheath

Multi-core shielding: SiHFC (2-63 core can be customized, cross-section 0.3-240mm²)
Single or multiple stranded copper wire / tinned wire conductor
Flame retardant silicone rubber insulation
Stranded composite cable
(Tinned) copper wire shield braid, coverage rate is 85%
Flame-retardant silicone rubber outer sheath
Characteristic

Single core: SiF / SiF / GL:

Working voltage: 300 / 500V

Temperature range: -60 ℃ + 180 ℃ (short-term up to + 200 ℃)

Conductor temperature limit: + 180 ℃ during operation

Test voltage: 2000V



Multi-core unshielded: SiHF

Working voltage: 300 / 500V

Temperature range: -60 ℃ + 180 ℃ (short-term up to + 200 ℃)

Conductor temperature limit: + 180 ℃ during operation

Test voltage: 2000V



Multi-core shielding: SiHFC

Working voltage: 300 / 500V

Temperature range: -60 ℃ + 180 ℃ (short-term up to + 200 ℃)

Conductor temperature limit: + 180 ℃ during operation

Test voltage: 2000V



Insulation resistance: 200 MOhm x cm

Minimum bending radius: 7.5x cable outer diameter

Corrosion of combustion gas: halogen-free

Performance
Dielectric strength performance is stable, insulation resistance is still high at high temperature
High flash point or flash point
Comply with CE and other standards
