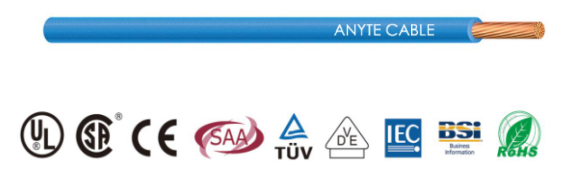

ANYFLEX-PVC-SINGLE-RV Single core fine copper PVC insulation electric wire

Structure

227 IEC 02(RV) 450/750V
Stranded fine copper wire or Tinned copper wire conductor 1.5-240mm2 , PVC Insulation
227 IEC 06 (RV) 300/500V
Stranded fine copper wire or Tinned copper wire conductor 0.5-1 0mm2 PVC Insulation
227 IEC 08 (RV-90) 300/500V

Characteristic

Standard thickness,easy strip and cut.

Performance

Work voltage：refer above for different section size
Temperature：227 IEC 02&227 IEC 06:70℃ 227 1EC 08：90℃
Standard：GB5023&IEC60227
