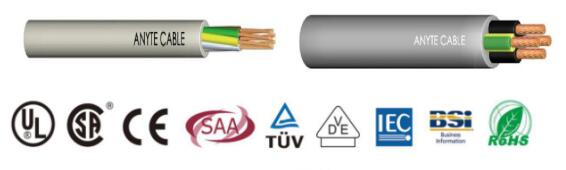

ANYFLEX-TC & TC-ER Cable (600V Multi-Conductor)
Structure
Conductor:
18 AWG and 16AWG fully annealed stranded bare
Copper to ASTMB3
Insulation:
Flame retardant PVC with nylon jacket,numbered cores (or with green yellow ground wire)
Jacket:
•Lea d-free, flame-retardant,sunlight-resistant Polyvinyl Chloride (PVC)
Characteristic
Jacket options for excellent oil resistance, outdoor sunlight/UV resistance, and extreme temperature or flame resistance.
Insulation options for excellent wet electrical performance, oil and chemical resistance and extreme temperature.
Conductor options to provide increased flexibility, greater flex life and corrosion resistance.
Performance
Rated at 90'Cdry, 75°C wet
Ripcord applied to all cables with jacket thickness of 60 mils or less
Provides outstanding sunlight, cold bend and cold impact resistance
Offers the smallest cable O.D.available for suitable applications
Provides long service life
Provides good oil a nd chemical resistance
Meets cold bend test at -25℃.
