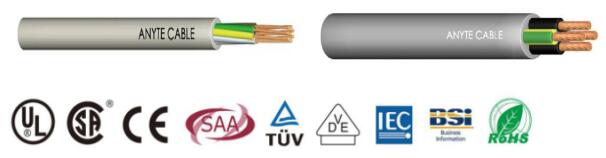

ANYFLEX-PUR-OZ/JZ PUR multi cores control cable
Structure
Compliant with VDE0295 / IEC228 Class 5, stranded fine stranded copper wire conductor
Special TPE or PVC elastic mixture core wire insulation
(The color can be customized according to customer requirements)
Insulated core wires are twisted into a small-pitch composite cable in an optimal arrangement
Characteristic
High flexibility at low temperatures, long service life, high wear resistance.
The product is firm and soft, with excellent resistance to grease and chemicals.
No harmful substances, RoHS compliant.
Comply with CE / TUV and other standards.
ANYFLEX flexible control cable PU series is designed to move approximately in the dragon chain system.
3 million cycles of bending
Performance
Working voltage: 300/500 V
Insulation resistance:> 20 MOhm x Km
Minimum bending radius:
mobile installation: 20x cable outer diameter
Fixed installation: 6x outer diameter of cable
Operating temperature range:
mobile installation: -5 ℃ to + 70 ℃
