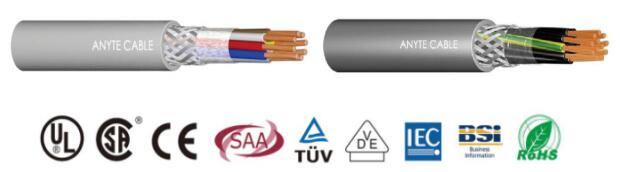

ANYFLEX-PUR-CY-OZ/JZ PUR multi cores shield control cable
Structure
Compliant with VDE0295 / IEC228 Class 5, stranded fine stranded copper wire conductor
Special PU anti-tear mixed core insulation
(The color can be customized according to customer requirements)
Insulated core wires are twisted into a small-pitch composite cable in an optimal arrangement
(Tinned) copper wire shield braid, coverage rate is 85%
PU wear-resistant and tear-resistant mixture outer sheath (color can be customized according to customer requirements)
Characteristic
Small outer diameter saves space required for cable installation
High voltage resistance test to ensure high safety of insulation
Has excellent resistance to mineral grease and high abrasion resistance
Resistance to UV, oxidation, ozone and hydrolysis
High-density braided shield guarantees interference-free transmission of signals and pulses
High flexibility at low temperatures
No harmful substances, RoHS compliant
Comply with CE / TUV and other standards
ANYFLEX flexible control cable PU series is designed to move about 3 million times in the chain
Performance
Working voltage: 300 / 500V
Insulation resistance:> 20MOhmxKM
Minimum bending radius:
mobile installation: 15x cable outer diameter
Fixed installation: 6x outer diameter of cable
Operating temperature range:
Mobile installation: -40 ℃ to + 80 ℃
Fixed installation: -50 ℃ to + 90 ℃
Radiation resistance: up to 100 × 106cJ / kg
Core wire ground cable:
G = Has green / yellow color core
X = No green / yellow color core
