ANYFLEX-PU H05BQ-F/H07BQ-F PUR Cable

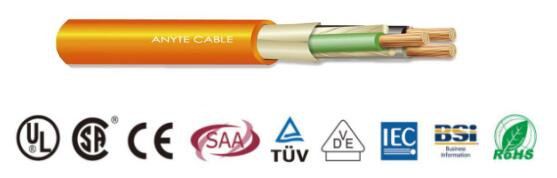

Structure
Stranded plain copper conductors.
Rubber core insulation,(The color can be customized according to customer requirements).
cores twisted into layers
orange PUR (polyurethane) outer sheath outer sheath (color can be customized according to customer requirements)
Characteristic
Flame retardant, UV resistant, ozone resistant
Small outer diameter saves space required for cable installation
No harmful substances, RoHS compliant
Comply with CE and other standards.
Performance
Voltage:H07BQ-F 450/750V H05BQ-F 300/500V
Test voltage: 2000V
Minimum bending radius: 6 x overall diameter (O/D) fixed, 12.5 x O/D flexing
Operating temperature range: -40 ℃ to + 90 ℃
