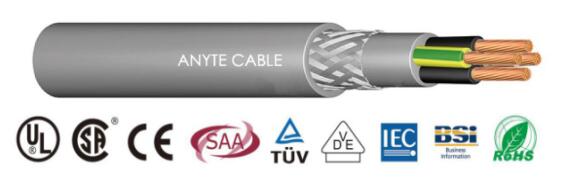

ANYFLEX-POWER-PVC-YCY PVC multi cores shield double jacket power cable 0.6/1KV

Structure
Compliant with VDE0295 / IEC228 Class 5, stranded fine stranded copper wire conductor
Special PVC mixed core wire insulation (color can be customized according to customer requirements)
Stranded composite cable
Special PVC mixture inner sheath
(Tinned) copper wire shield braid, coverage rate is 85%
Special PVC mixture (the outer sheath can be customized)
Characteristic

High weaving density and low transfer impedance to prevent pulse interference

Minimize external interference during signal transmission

Meet strict electrical and mechanical performance requirements

Excellent resistance to acids, alkalis and grease at room temperature

No harmful substances, RoHS compliant

Performance

Working voltage: 600 / 1000V

Insulation resistance:> 20 MOhm x Km

Minimum bending radius:

mobile installation: 20x cable outer diameter

Fixed installation: 6x outer diameter of cable

Operating temperature range:

mobile installation: -5 ℃ to + 70 ℃
