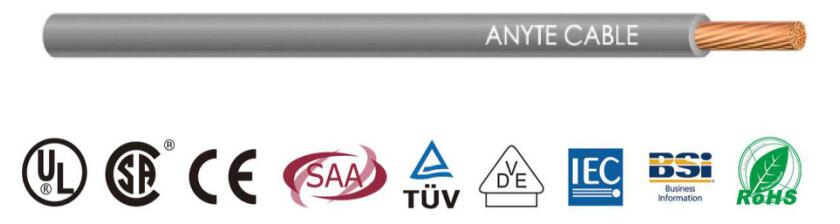

Halogen free single core electric wire

Structure

Compliant with VDE0295 / IEC228 Class 5,

stranded fine stranded copper wire conductor

LSZH (Low Smoke Zero Halogen) insulation layer according to DINVDE 0282

Characteristic

No toxic substances, no corrosive substances, no hydrogen chloride is released, thus avoiding such hazards
Special oil resistance, chemical resistance, ozone resistance, small bending radius, flame retardancy
Low smoke does not produce toxic substances during combustion, ensuring maximum life safety of personnel
No harmful substances, RoHS compliant

Performance

Operating Voltage:

1.0mm2 and below: 300 / 500V

1.5mm2 and above: 450 / 750V

Minimum bending radius: 5x cable outer diameter

Operating temperature range: -5 ℃ to + 90 ℃

Radiation resistance: up to 20 × 106cJ / kg
