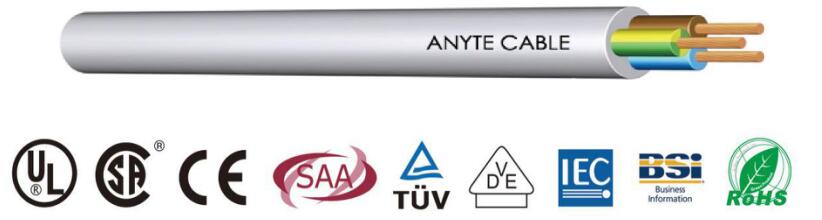

H03Z1Z1-F/H05Z1Z1-F Halogen free multi cores jacket cable
Structure
Compliant with VDE0295 / IEC228 Class 5, stranded fine stranded copper wire conductor
Halogen-free composite core wire insulation according to DIN VDE 0281
(The color can be customized according to customer requirements)
Halogen-free sheath compound .(Custom colors can be customized according to customer requirements)
Characteristic
Special oil and chemical resistance, flexible small bending radius, self-extinguishing, flame retardant
Low smoke does not produce toxic substances during combustion, ensuring maximum life safety and resistance to hydrolysis
No harmful substances, RoHS compliant
Comply with CE / TUV and other standards
Performance
Rated voltage：H032121-F 300/300 V
H052121-F 300/500 V
Test voltage：2000V
Temperature range：
mobile installation：-30℃ to +70℃
Fixed installation：-40℃ to +80℃
Minimum bending radius: mobile installation: 12.5 × cable outer diameter
Fixed installation: 4 × cable outer diameter
Insulation resistance:> 20MΩ × km
