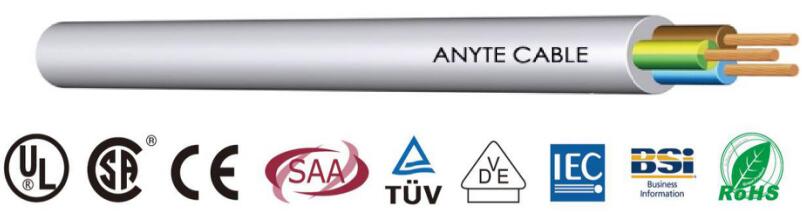

Halogen free 0.6/1KV Power cable

Structure

Compliant with VDE0295 / IEC228 Class 5,

stranded fine stranded copper wire conductor

Cross-linked polyolefin insulation layer according to IEC 60502
(The color can be customized according to customer requirements)

Characteristic

No toxic substances, no corrosive substances and no hydrogen chloride are released, thus avoiding such hazards.And can increase the maximum working temperature to 90 ℃. Fire resistance: Its flame retardant properties help avoid fires and improve overall installation safety. Ecology: RZl-K cables do not contain PVC-like halogen-containing substances, to avoid the discharge of dioxins to the air
No harmful substances, RoHS compliant
Comply with CE / TUV and other standards

Performance

Work voltage：600/1000V
Insulation resistant：> 20 MOhm x km
Test voltage：2000V
Minimum bending radius：5xcable O.D.
Temperature：-30℃ to +90℃
