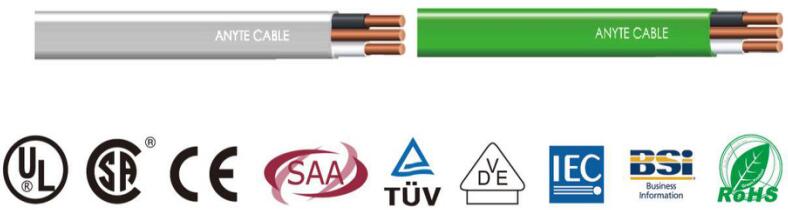

LSZH Multi cores flat cable

Structure

Complies with VDE0295 / IEC228 Class 1 or Class 2 conductor
Halogen-free composite polyethylene (cross-linked polyethylene) insulation
(The color can be customized according to customer requirements)

Characteristic

Special oil resistance, chemical resistance, flexible small bending radius, self-extinguishing, flame retardant
Low smoke does not produce toxic substances during combustion, ensuring maximum life safety and resistance to hydrolysis
No harmful substances, RoHS compliant
Comply with CE / TUV / BS / SAA and other standards

Performance

Voltage: 300 / 500v
Temperature range: Mobile installation: -30 ℃ to + 70 ℃
Fixed installation: -40 ℃ to + 90 ℃
Minimum bending radius: mobile installation: 12 5 × cable outer diameter
Fixed installation: 4 × cable outer diameter
Insulation resistance:> 20MΩ × km
