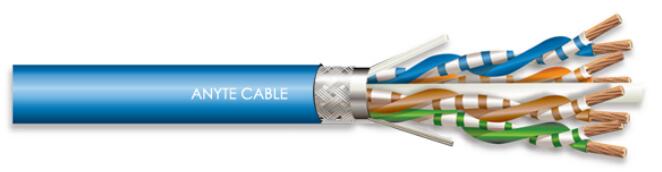

ANYDATA-LSZH LANCABLE Double sheath water resistant LSZH LAN CABLE

Structure

Solid or 7 stranded bare copper (tinned) conductor.
HDPE polyethylene insulated according with UL444 standard .
Two insulation conductors twisted together,4 pairs, With a cross between the pairs
Special AL foil tape 100% covered
Drain wire :Solid or 7 stranded bare copper (tinned)
(Tinned)or bare copper wire braiding,85 rate of coverage.
Standard LSZH Flame retardant sheath (color can be customized according to customer requirements)

Characteristic

Transmission frequency to 100 MHz, support duplex applications

Without noxious material,acc. To ROHS.

Passes UL VW-1& CSA FT1 vertical flame test

Performance

Rated voltage:30V

Operation temperature: mobile laying :- 5°C to +80°C,

fixed laying: -40°C to +80°C

Flame retardant rating：IEC60332-1 CM

Insulation resistance 20℃（Ω/ KM）<93.8

operating temperature:70℃

velocity of propagation:68％
