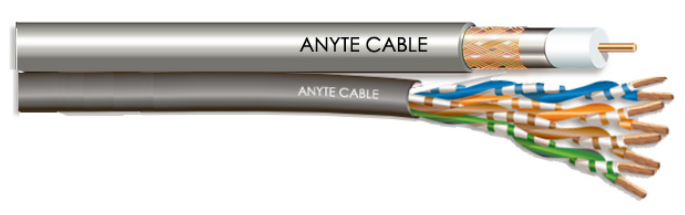

ANYAPPS-SECURITY CABLE-COAX WITH LAN CABLE Coax cable with lan Cable used to Video Monitoring System
Structure
RG6
Conductor: Solid or strands of fine (tin) copper wire,or CCS,CCA materials.
Insulation :PE Foamed or PE Solid
AL foil tape 100% covered
(optional single non-stick aluminum foil, single stick aluminum foil, double sticky aluminum foil, non-stick double-sided aluminum foil and so on)
Copper or tinned copper wire braid or spiral shielding. The coverage of 85%
(optional Al-mg,CCA and so on)
Sheath:PVC mixture(color can be customized according to customer requirements)
CAT5E
7 strands of fine (tin) copper wire
Characteristic
Meet UL444 standards, UL13 standards, UL1685 fire test, NEC 800, NEC725
Without noxious material,acc. To ROHS.
Construction saving cost, facilitate management.
This product conforms EEC procedures 73/23 (low voltage procedures) of CE rules
The CE authentication, make cable can use in Europe and other north American market at the same time.
Performance
Rated voltage:30V
operating temperature:Mobile installation:-5 ° C to +80 ° C , fixed installation:-40 ° C to 80 ° C
