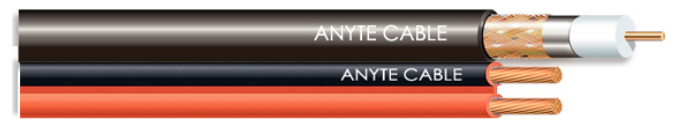

ANYAPPS-SECURITY CABLE-COAX CABLE WITH POWER CORD Coax cable with power cord used to Video Monitoring System
Structure
RG59
Conductor: Single or strands of fine (tin) copper wire,ccs etc.
Insulation :PE Foamed or PE Solid
AL foil tape 100% covered
(optional single non-stick aluminum foil, single stick aluminum foil, double sticky aluminum foil, non-stick double-sided aluminum foil and so on)
Copper or tinned copper wire braid or spiral shielding. The coverage of 85%
(optional Al-mg,CCA and so on)
Sheath:PVC mixture(color can be customized according to customer requirements)
power cord
strands of fine (tin) copper wire
Sheath:PVC mixture(usually black with white color )
Characteristic
Meet UL444 standards, UL13 standards, UL1685 fire test, NEC 800, NEC725
Without noxious material,acc. To ROHS.
Stable performance, signal transmission good, stable quality, the picture without snow
This product conforms EEC procedures 73/23 (low voltage procedures) of CE rules
The CE authentication, make cable can use in Europe and other north American market at the same time.
Performance
Rated voltage:300V
operating temperature:Mobile installation:-5 ° C to + 80 ° C, fixed installation:-40 ° C to 80 ° C
