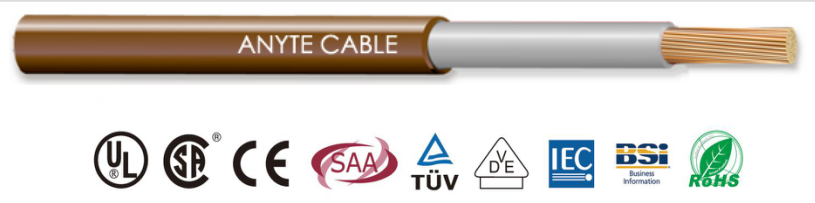

ANYCERT-SAA-AS/NZS 5000.1-0.6/1KV-SR-D Single core double insulation electric wire

Structure

Conductor, Class 1, Class 2 or Class 5 copper wire according to AS/NZS1125
Insulated to AS/NZS 3808, PVC V90
Reinforced external insulation according to AS/NZS 3808, PVC 5V-90
Working voltage: 0.6 / 1kV

Characteristic

Environmentally friendly materials, no harmful substances, in compliance with RoHS or REACH directives
SAA-compliant cable for use in Australia, New Zealand
Double reinforced insulation for better protection

Performance

Minimum bending radius: mobile installation:
15x cable outer diameter
Fixed installation: 4x cable outer diameter
Operating temperature range:
Mobile installation: -5 ℃ to + 90 ℃
Fixed installation: -40 ℃ to + 90 ℃
Flame retardant: IEC 60332.1
