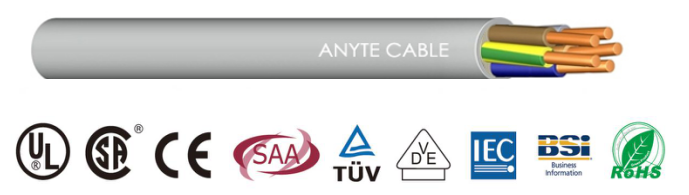

ANYCERT-SAA-AS/NZS 5000.1-0.6/1KV-SRC Multi core PVC Power Cable

Structure

Conductor, Class 1, Class 2 or Class 5 copper wire according to AS/NZS1125
Insulated to AS/NZS 3808, PVC V90
Conforms to AS/NZS 3808 standard sheath, PVC 5V-90
Operating voltage: 0.6/1kV

Characteristic

Environmentally materials, no harmful substances, in compliance with RoHS or REACH directives

SAA-compliant cable for use in Australia, New Zealand

Performance

Minimum bending radius:

mobile installation: 15x cable OD

Fixed installation: 4x cable OD

Operating temperature range:

mobile installation: -5°C to +90°C

Fixed installation: -40°C to +90°C

Flame retardant : IEC 60332.1
