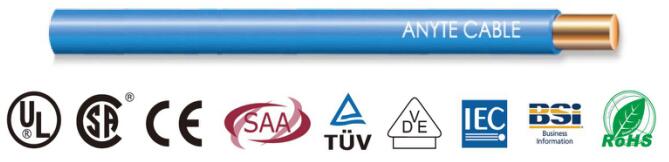

ANYCERT-CE/TUV-H05V-U H05V-U Solid Copper PVC Electric Wire

Structure

According to VDE0295.IEC60228-1 single solid conductor (tinned) copper wire
Complies with VDE 0281.HD 21.3 & IEC 60227 PVC core wire insulation.

Characteristic

Using environmentally friendly materials, in line with ROHS directive
Multi-standard cables CE / TUV and other approvals comply with European standards, so that the cable can adapt to different European market needs

Performance

Working voltage: 300 / 500V
Minimum bending radius: 15x cable outer diameter
Operating temperature range:
Mobile installation: -5 ℃ to + 80 ℃
Fixed installation: -40 ℃ to + 70 ℃
Oil resistance, flame retardant :
IEC 60332.1 / HD 405.2 and VDE 0207-4

PDF DOWNLOAD
