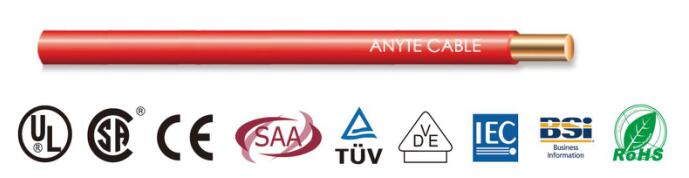

ANYCERT-CE/TUV-H07V-U H07V-U Solid Copper Single core PVC Electric Wire

Structure

VDE0295.IEC60228-2 solid copper conductor.
VDE 0281.HD 21.3 &IEC 60227 PVC Insulation.

Characteristic

Using environmentally protect materials, comply with ROHS directive.
Multi-standard wiring cables CE / TUV / VDE and other approvals conform to European standards, so that the cable can adapt to different European market needs.

Performance

Working voltage: 450 / 750V
Minimum bending radius: 15x cable outer diameter
Operating temperature range:
Mobile installation: -5 ℃ to + 80 ℃
Fixed installation: -40 ℃ to + 70 ℃
Oil resistance, flame retardant: IEC 60332.1 / HD 405.2 and VDE 0207-4

PDF DOWNLOAD

Previous:ANYCERT-CE/TUV-H05V-U H05V-U Solid Copper PVC Electric Wire
Next:ANYCERT-CE/TUV-H05V2-U H05V2-U Fire resistant Solid copper PVC Wire
