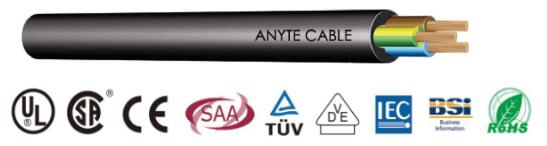

ANYCERT-CE/TUV/VDE-H05VV5-F H05VV5-F Oil resistant PVC Control Cable

Structure

Compliant with VDE0295. IEC60228 fine stranded (tinned) copper wire
Meet VDE 0281.HD 21.5 & IEC 60227 special flame retardant PVC insulation,PVC jacket.

Characteristic

Small outer diameter to save space for cable installation
Meet strict electrical and mechanical performance requirements
Firm and soft, with excellent resistance to grease and chemicals.Using environmentally protect materials, in line with ROHS directive
CE / TUV and other approvals comply with European standards,

Performance

Working voltage: 300V / 500V
Minimum bending radius:
Mobile installation: 15x cable outer diameter
Fixed installation: 4x cable outer diameter
Operating temperature range:
Mobile installation: -5 ℃ to + 70 ℃
Fixed installation: -40 ℃ to + 70 ℃
Oil resistance, flame retardant:
IEC 60332.1 / HD 405.2 and VDE0207-4
