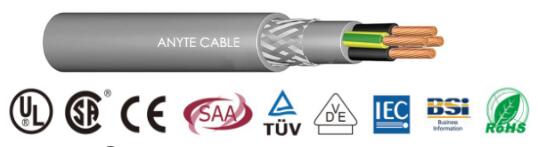

ANYCERT-CE/TUV-H05VVC4V5-K H05VVC4V5-K Inner jacket shield Control Cable
Structure
Compliant with VDE0295. IEC60228 fine stranded (tinned) copper wire
Meets VDE 0281.HD 21.7 T12 polyvinyl chloride PVC insulation,Compliant with VDE 0281.HD 21.7 TM2 PVC inner sheath (optional) .
(Tinned) copper wire shield braid, coverage rate is 85%.
Complies with VDE 0281.HD 21.7 TM5 oil-resistant polyvinyl chloride PVC outer sheath.
Characteristic
High-density braided shield ensures interference-free transmission of all signals and pulses
Meet the most stringent electrical and mechanical performance requirements
Firm and soft, with excellent resistance to grease and chemicals.
Performance
Working voltage: 300V / 500V
Minimum bending radius:
Mobile installation: 10x cable outer diameter
Fixed installation: 5x cable outer diameter
Operating temperature range:
mobile installation: -5 ℃ to + 70 ℃
Fixed installation: -40 ℃ to + 70 ℃
