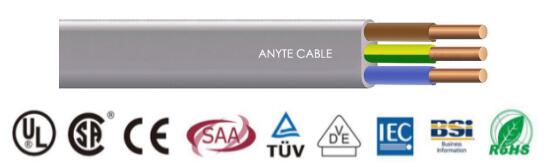

ANYCERT-CE-H05Z1Z1H2-U LSZH Flat Cable H05Z1Z1H2-U

Compliant with VDE0295. IEC60228 stranded fine (tinned) copper wire

Compliant with VDE 0281.HD 21.5 & IEC 60227 low smoke halogen free LSZH insulation

low smoke halogen free LSZH sheath

(The color of insulation sheath can be customized according to customer requirements).

No toxic gas will be generated during the combustion process, comply with EN60754

In case of fire, low smoke density complies with EN61034.

Using environmentally materials, comply with ROHS directive.

Working voltage: 300 / 500V

Minimum bending radius: 12x cable outer diameter

Operating temperature range:

Mobile installation: -5 ℃ to + 90 ℃

Fixed installation: -40 ℃ to + 90 ℃

Flame retardant: IEC 60332-1-2
