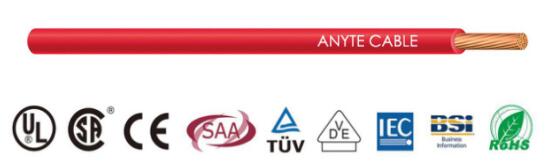

ANYCERT-CE H01N2-D/H01N2-E Welding Cable

Structure

Compliant with category 6 of VDE0295 / IEC228, stranded fine copper conductor
Neoprene compound insulation (custom colors according to customer requirements)

Characteristic

Special oil resistance, chemical resistance, small bending radius
Cold and flame retardant, UV and ozone resistant
No harmful substances, RoHS compliant
Comply with CE and other standards

Performance

Working voltage: 100V
Insulation resistance:> 20 MOhm x Km
Minimum bending radius:
12x cable outer diameter
Operating temperature range: mobile installation:-25 ℃ to +80 ℃
Fixed installation:-40 ℃ to + 90 ℃

PDF DOWNLOAD
