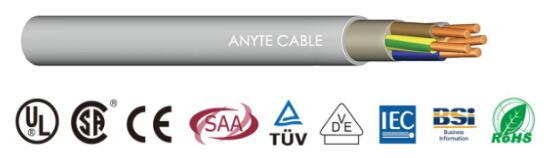

ANYCERT-CE/TUV NYY-J/NYY-O Power Cable

Structure

Complies with VDE0295 / IEC228 Class 1 or Class 2 conductor
PVC core insulation
Color coding: 1-5 cores according to VDE 0293
Numbered cores than or equal to 6 cores
With inner sheath,PVC outer sheath.

Characteristic

Flame retardant,No harmful substances, RoHS compliant
Comply with CE / TUV and other standards
NYM-O: No green / yellow ground wire.
(the remaining cores can be colored or numbered coded)
NYM-J: a green / yellow color ground wire.
(the remaining cores can be colored or numbered coded）

Performance

Rated voltage: 0.6 / 1 KV
Test voltage: 4000V
Minimum bending radius: single core 15 × cable outer diameter multi-core 12 × cable outer diameter
Temperature range:
Mobile installation: -5 ℃ to + 50 ℃
Fixed installation: -40 ℃ to + 70 ℃
Flame retardant: IEC 60332.1
