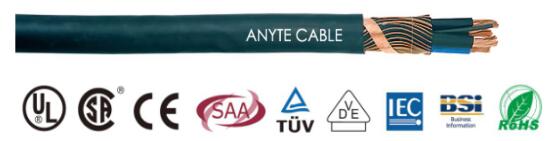

ANYCERT-CE N2XCWY XLPE Copper Wire Shield Power Cable
Structure
Conductors in accordance with VDE0295/IEC228, Class 1 or Class 2
XLPE insulation
Color code: 1-5 cores according to VDE 0293
Numbered cores for 6 cores and above.with inner sheath
Ring-shaped copper wire concentrically stranded, outer copper band wrapped
PVC outer sheath
(Customizable low-smoke, halogen-free LSZH sheath, model number: N2XCWH)
Characteristic
Rated voltage: 0.6/1 KV
Test voltage: 4000V
Minimum bending radius: single core 15 x cable outside diameter
Multi-core 12× cable outer diameter
Temperature range: mobile installation: -5°C to +50°C
Fixed installation: -40°C to +70°C
Flame retardant: IEC 60332.1
Performance
No hazardous substances, RoHS compliant
Conforms to CE/TUV standards, etc.
R=round conductor shape s=fan conductor shape
e=Single conductor/Lead 1 conductor in accordance with IEC 60228/VDE 0295
m = Multi-conductor conductor / Class 2 conductor in accordance with IEC 60228/VDE 0295.
