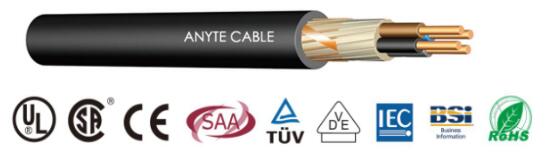

ANYCERT-CE N2XCY XLPE/Cu tape Shield PVC Jacket Power Cable
Structure
Power cables are used in industry, power distribution cabinets, power plants,connection boxes and street lighting, as well as as as control cables for transmitting pulses and test data.This cable can be laid outdoors, underground, in water, indoors, in cable pipes.
Characteristic
Rated voltage: 0.6/1 KV
Test voltage: 4000V
Minimum bending radius:
single core 15 x cable outside diameter
Temperature range: mobile installation: -5°C to +50°C
Fixed installation: -40°C to +70°C
Flame retardant: IEC 60332.1
No hazardous substances, RoHS compliant
Conforms to CE/TUV standards, etc.
Performance
R=round conductor shape s=fan conductor shape
e=Single conductor/Lead 1 conductor in accordance with IEC 60228/VDE 0295
m=multi-conductor/conductor type 2 according to IEC 60228/VDE 0295
