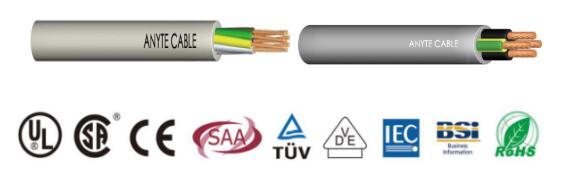

ANYFLEX-OPVC-OZ/JZ OPVC Multi cores oil resistant control cable

Structure

Compliant with VDE0295 / IEC228 Class 5, stranded fine stranded copper wire conductor
Special oil-resistant OPVC mixture core wire insulation (color can be customized according to customer requirements)

Characteristic

Optimized reduction in outer diameter, thereby saving space required for cable installation
Meet the most stringent electrical and mechanical performance requirements
Excellent anti-grease properties at room temperature
Use multiple strands of stranded copper wire and a smaller cable pitch, and add enough talc powder in the cable core to reduce friction, so that the core wire and core wire, core

Performance

Work voltage：300/500 V
Insulation resistant：> 20 MOhm x km
Minimum bending radius:
mobile installation：20xcable O.D.
Fixed installation:6xcable O.D.
Temperature：
Mobile installation：-5℃ to +70℃，
Fixed installation：- 40℃ to +80℃
Earth wire: G-green/yellow ground wire X-withour green /yellow wire
